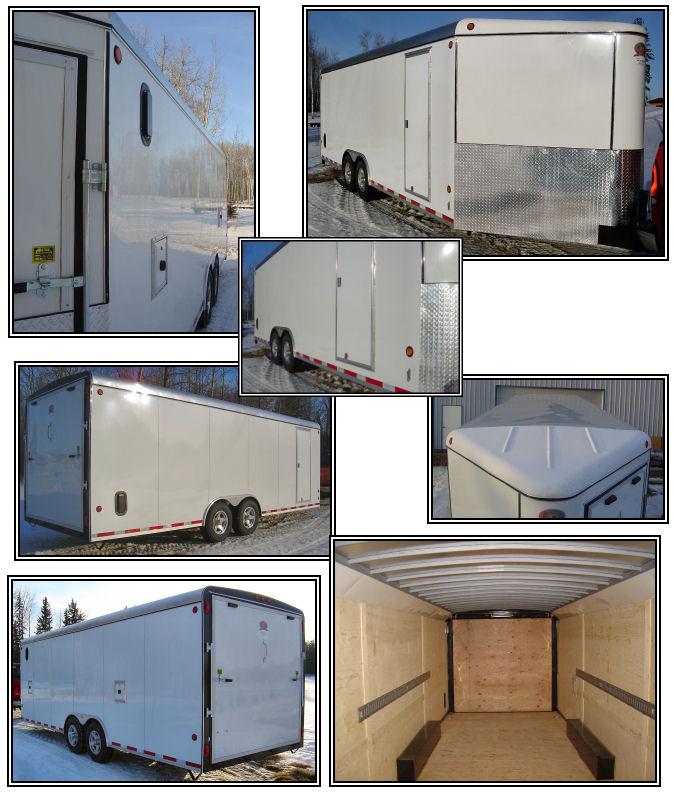

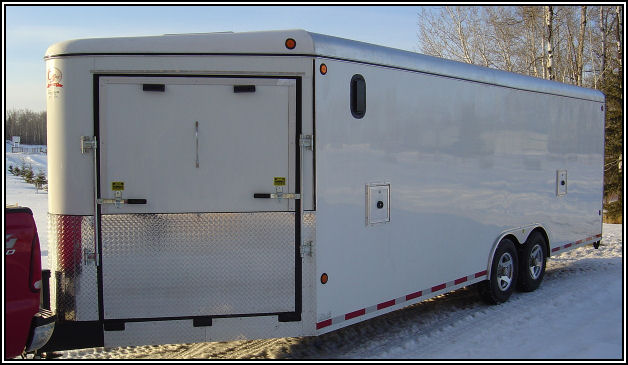

Model FX9 HEAVY DUTY SLED/QUAD/CAR/TOY HAULER

Manufatured by CJay Trailers ®

8.5 ft. wide, x 23 ft. long body with a 66" V-nose and 78" high.
CANADIAN MADE
CUSTOM LENGTH, AND HEIGHT IS AVAILABLE



Trailer Features
Standard Features

  • 2 - 6000 lbs. torflex rubber ride axles
  • Electric brakes on all wheels
  • ST225/75R15 radial tires
  • White spoke wheels c/w center caps
  • 2 5/16” moulded ball coupler
  • 7000# side crank drop foot jack
  • Teardrop aluminum fender flares
  • 38” high aluminum checkerplate rock guard
  • Spring assist rear ramp door c/w bar locks
  • V-nose front c/w spring assist ramp door with bar locks
  • 30” wide side door c/w RV latch
  • Smooth rivetless exterior aluminum sheeting,  Black or White
  • One-piece aluminum roofing,  radius roof design available on order
  • Tubing mainframe
  • SLB I-beam crossmembers
  • Structural tubing interior framing
  • 3/8” interior wall sheeting
  • ¾” interior flooring
  • 1 - 12 volt interior light
  • Protected wiring with sealed connections
  • Breakaway kit c/w charger
  • Safety chains c/w hooks
  • Rubber mounted, recessed lighting
  • Sloped dovetail at rear of trailer
  • 4 - In-floor flush mounted swivel D-rings
  • 2 of wall mounted two-way vents
  • 2 - fuel access doors

    •
